CM3 SPECIFICATIONS
Type: prepolarised cardioid condenser microphone
Frequency response: 20-20000Hz (100-16000Hz+-1.2dB on axis!)
Phantom power: 24 - 48V
current consumption: 3.5 mA
Impedance: <100 Ohm
Sensitivity: 6mV/PA -44dB
S/N ratio (DIN/CCIR): 78dB(A)/68dB
Noise level: 16dB(A)
Max SPL: 130dB
Size: 77mm x 20mm

NEW! SMi / STi / QMi SERIES SPECIFICATIONS:
TYPE Prepolarized condenser microphone
PHANTOM POWER 40-52V
FREQ. RESPONSE 20 - 20000 Hz (70-15000Hz +-1.2dB on axis!)
IMPEDANCE < 100 Ohm 1KHz
SENSITIVITY 10mV/PA (SM3L/ST6L 7mV/PA -44dB
S/N ratio (DIN/CCIR) 83dB(A)/73dB
Noise level:11dB(A)
MAX SPL 130dB
CURRENT CONSUMPTION 3.5 mA
CONNECTOR 3 PIN XLR (pin1 GND, pin 2+, pin3 -)
SIZE 140mm x 47mm / 170mm x 47mm
WEIGHT 320g (microphone only)


No Longer manufactured product:

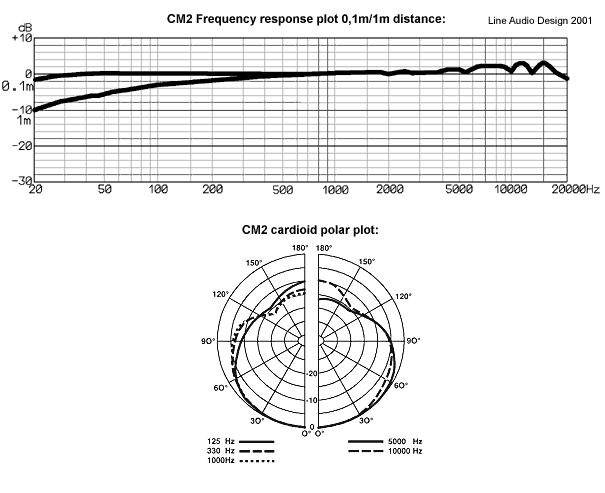

CM2 SPECIFICATIONS
Type: prepolarised cardioid condenser microphone
Frequency response: 20-20000Hz
Phantom power: 24 - 48V
current consumption: 3.5 mA
Impedance: <100 Ohm
Sensitivity: 5mV/PA -45dB
Signal to noise: 74dB(A)
Max SPL: 130dB
Size: 77mm x 20mm


No Longer manufactured versions:

 SM / ST / QM SERIES SPECIFICATIONS:
TYPE Prepolarized condenser microphone
PHANTOM POWER 40-52V
FREQ. RESPONSE 20 - 20000 Hz
IMPEDANCE < 100 Ohm 1KHz
SENSITIVITY 7mV/PA -42dB (SM3L/ST6L 5.5mV/PA -44dB
S/N ratio (DIN/CCIR) 79dB(A)/69dB
MAX SPL 130dB (SM3L/ST6L 127 dB)
CURRENT CONSUMPTION 3.5 mA
CONNECTOR 3 PIN XLR (pin1 GND, pin 2+, pin3 -)
SIZE 140mm x 47mm / 170mm x 47mm
WEIGHT 320g (microphone only)
